Knock aero door kit 2600 mm · flat-pack · 4 locks
Aluminium · anodised
Knock aero door kit (2 sheets, single hinge)
Specifications
- Dimensions

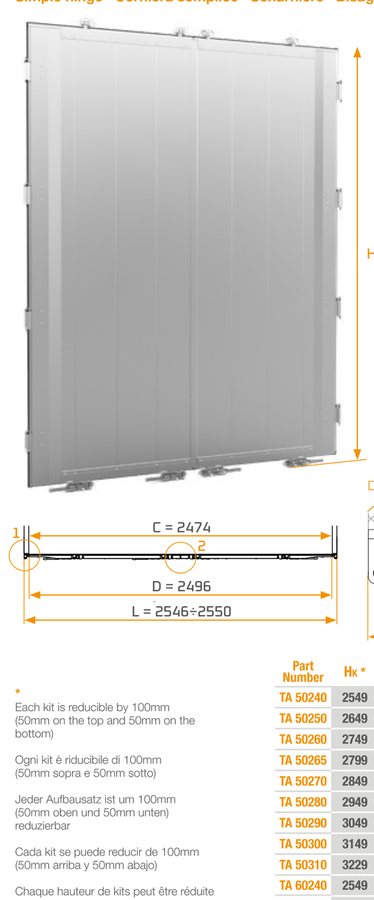

- HT 2600 (opening) · HD 2632 (door) · HK 2749 (kit) · A 547 · B 548 · FIXED WIDTH: C 2.474 · D 2.496 · the 2.534÷2.538 · L 2.546÷2.550 mm. A = opening CLEAR between the 1.ª and at 2.ª hinge, and by symmetry between the 3.ª and at 4.ª · B = clear opening CENTRE, between the 2.ª and at 3.ª. Are clear distances, from the end of one hinge to the start of the next, not centre to centre. The chain closes on HD, never over HK: 990 + 2A + B = HD, exact. C = clear width between the rear posts · D = to the edge of the leaf profile · the = to the EIXO of the hinge pin · L = to the outer end of the hinge. C and D are fixed; the and L vary 4 mm because the hinge has ±2 mm of adjustment per side when fitted — is the same clearance that appears at the centre joint as 7÷11. Not is profile manufacturing tolerance. On the Aero L − the = 12 mm, which is the pin diameter.
- Weight
- 105 kg
- Position
- Symmetrical part / not handed
- Vehicle area
- Rear
- Technical data
- Door kit FLAT-PACK in aluminium for trailers and semi-trailers. Hinge SINGLE, pitch 255/120/A/120/B/120/A/120/255. 4 LOCK KITS. Assembly clearance 7÷11 mm. KIT CONTENTS: leaf profiles ×8 · end profiles/frame ×4 · lock kits ×4 · seal ×1. SHIPPING BOX 2.885 × 430 × 245 mm (H kit ≤ 2.845) or 3.285 × 430 × 245 mm (H kit ≤ 3.249). REDUCIBLE KIT 100 mm (50+50).
Identification
- Supplier reference
- TA50260
- Brand
- Takler
- Type
- Kit
THE HINGE IS NOT IN THE KIT — order it separately: steel hinge kit 50000579 (bolt-on, 2,30 kg) or 50000538 (weld-on, 2,1 kg). Up to the previous edition of this catalogue it was included; it no longer is. SUPPLIED FLAT-PACK — assembly is the bodybuilder's.
