G14-L3-0002

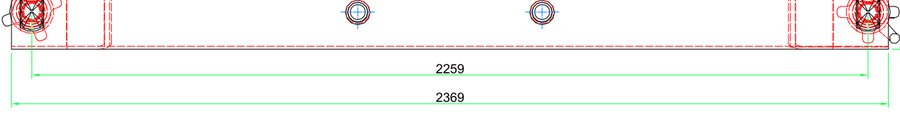

Alignment rollers Ø100 for bar H100
Steel
Set of alignment guide rollers Ø100 in steel for the chassis crossbar H100, in which they are not included. Without the rollers the bar still mounts, but the container does not self-align when loading.
Specifications
- Dimensions
- Unit of two alignment rollers Ø100 · overall height of the assembly 204,5 · width of the support plate 236 · width over the two rollers, tangent to tangent 215 · overall depth in plan 275 = 125 of plate + 150 of leg · width of one leg 90 · centre distance between the two rollers 116 · thickness of the stirrup in U 8 · projection of the roller beyond the edge of the plate 10
- Weight
- 13,400 kg
- Position
- Symmetrical part / not handed
- Vehicle area
- Chassis
- Technical data
- Unit of two alignment rollers Ø100 for the crossbar H100 · overall height 204,5 mm · sheet widths 236 and 215 mm · overall depth 275 mm · centre distance between the two rollers 116 mm · 150 mm · 90 mm · stirrup of 8 mm · sheet of 10 mm. Steel, 13,400 kg. VENDE-SE to PART of the bar G14-L3-0001: without the rollers the bar still fits, but the container does not self-align when loading — is the accessory that makes loading a one-man job.
Identification
- Supplier reference
- 52253201
- Brand
- Mecatrailer
- Type
- Component
