G15-L4-0014

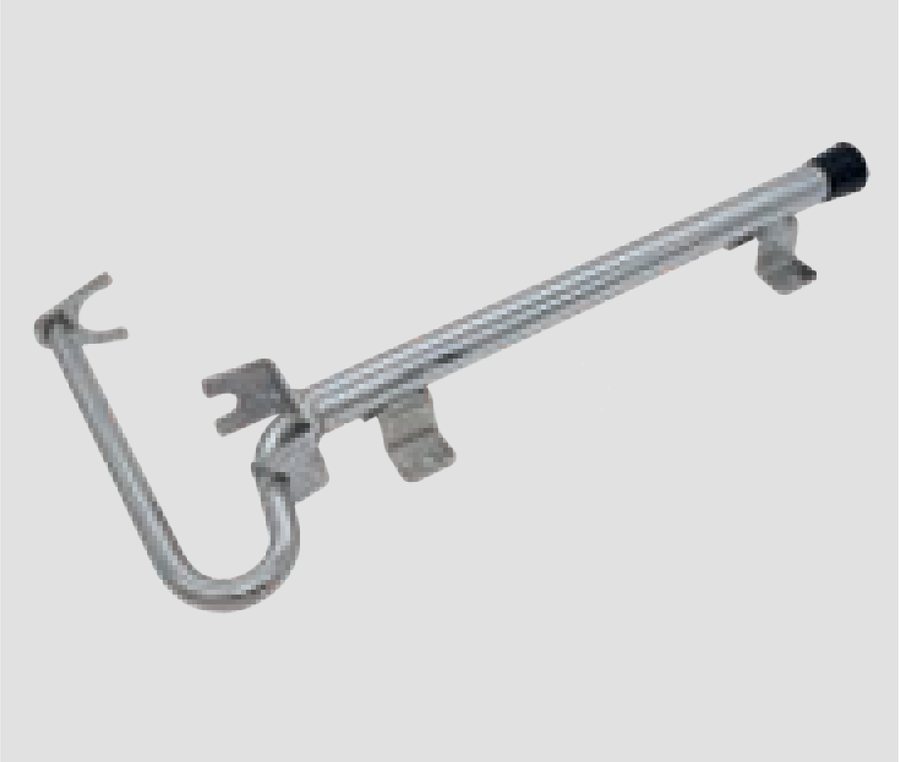

Medium stainless steel door lever retainer
Stainless steel AISI 304 · polished
Lever door retainer for rear door, in the medium size, in stainless steel AISI 304 polished, with 516 × 277 mm and maximum stroke of 275 mm. Tube Ø27, rod Ø14, base of 101,5 mm with four holes Ø6,5 and 81,0 mm high.
Specifications
- Dimensions
- 516×277 mm · maximum stroke 275 · tube Ø27 · rod Ø14 · base 101,5 with 4×Ø6,5 · height 81,0
- Weight
- 1,750 kg
- Position
- The manufacturer does not declare handing
- Vehicle area
- Rear
- Technical data
- The tube diameter distinguishes the finishes: Ø27 in stainless steel, Ø25 in the zinc-plated version.
Identification
- Supplier reference
- 405030201
- Brand
- MRF
- Type
- Component
Door retainer: it holds the door OPEN; it does not close it or absorb impact.
