G15-L3-0018
Knock bounce door 4 3100 mm · flat-pack kit · 4 bi-fold leaves · 4 locks
Aluminium · anodised
Aluminium rear door for trailer and semi-trailer, opening of 3100 mm, four leaves with bi-fold opening and hinge DOUBLE — it takes up 13 mm less in outside width than the single-hinge one. Supplied in FLAT-PACK KIT, for assembly at Mecanizados, with four locks. Certified UNI EN 12642 XL by DEKRA. 137 kg.
Specifications
- Dimensions

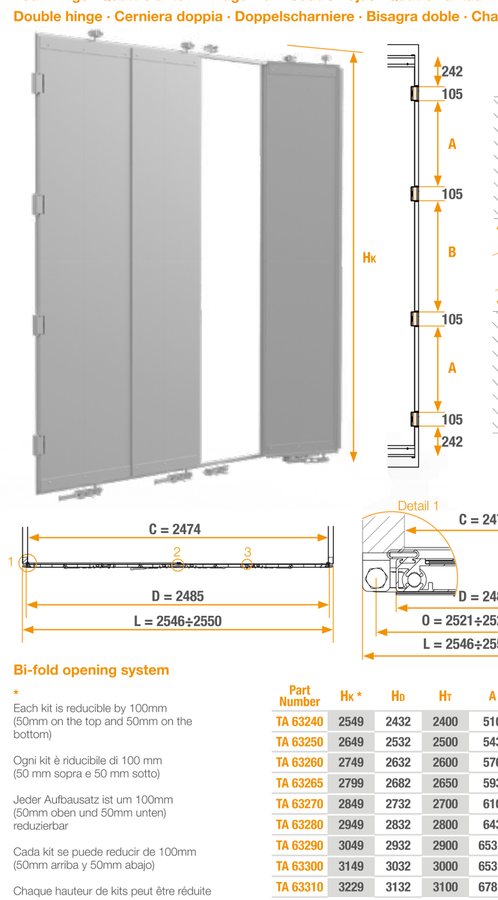

- HT 3100 (opening) · HD 3132 (door) · HK 3229 · A 678,5 · B 872 · FIXED WIDTH: C 2.474 · D 2.485 on the elevation and 2.489 on the detail 1 ()
- Weight
- 137 kg
- Position
- Symmetrical part / not handed
- Vehicle area
- Rear
- Technical data
- Aluminium door for trailers and semi-trailers, purchased in FLAT-PACK KIT. REDUCIBLE KIT 100 mm (50+50). IDENTICAL DIMENSIONS to the version of 2 leaves of the same family (same HK/HD/HT/A/B) — the difference is the number of leaves. CONTRADICTION IN THE CATALOGUE of the manufacturer, proven by comparison: the versions of 2 SHEETS (aero and bounce) declare, from HT 2.650, weights HIGHER to those of 4 leaves with dimensions IDENTICAL — aero 122 against aero 4 with 113 in the same HT 2.650.
Identification
- Supplier reference
- TA63310
- Brand
- Takler
- Type
- Kit
SUPPLIED FLAT-PACK FROM THE FACTORY: assembly is done by Mecanizados.
