Knock bounce door kit 3100 mm · flat-pack · 4 locks
Aluminium · anodised
Knock bounce door kit (2 sheets, double hinge)
Specifications
- Dimensions

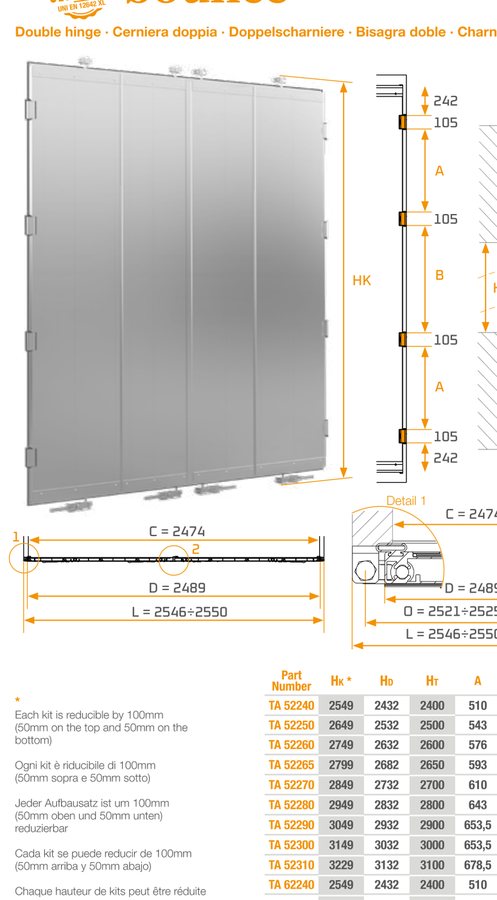

- HT 3100 (opening) · HD 3132 (door) · HK 3229 (kit) · A 678,5 · B 872 · FIXED WIDTH: C 2.474 · D 2.489 · the 2.521÷2.525 · L 2.546÷2.550 mm. A = opening CLEAR between the 1.ª and at 2.ª hinge, and by symmetry between the 3.ª and at 4.ª · B = clear opening CENTRE, between the 2.ª and at 3.ª. The chain closes on HD: 904 + 2A + B = HD + 1 mm, systematically across the twelve — table rounding, not a design difference. C = clear width between the posts · D = to the edge of the leaf profile · the = to the EIXO of the pin · L = to the outer end of the hinge. C and D are fixed; the and L vary 4 mm because of the hinge adjustment when fitted — the same clearance as the centre joint, 7÷11. Not is manufacturing tolerance.
- Weight
- 143 kg
- Position
- Symmetrical part / not handed
- Vehicle area
- Rear
- Technical data
- Door kit FLAT-PACK in aluminium for trailers and semi-trailers. Hinge DOUBLE, pitch 242/105/A/105/B/105/A/105/242. 4 LOCK KITS. Assembly clearance 7÷11 mm. KIT CONTENTS: leaf profiles ×8 · end profiles/frame ×4 · lock kits ×4 · seal ×1. SHIPPING BOX 2.885 × 430 × 245 mm (H kit ≤ 2.845) or 3.285 × 430 × 245 mm (H kit ≤ 3.249). REDUCIBLE KIT 100 mm (50+50).
Identification
- Supplier reference
- TA52310
