G09-L2-0001

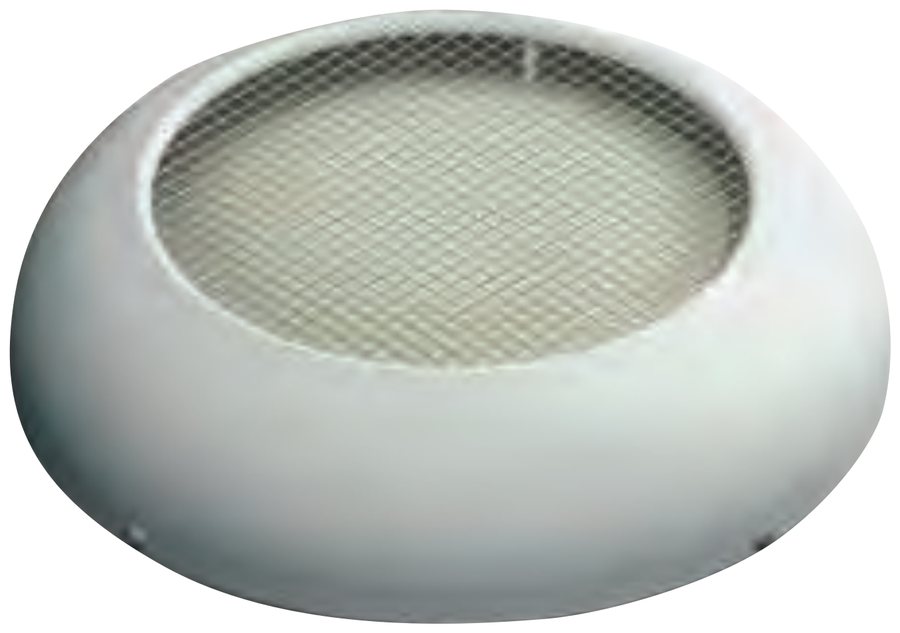

Static wind roof ventilator DE 200 · aluminium RAL 7035
Aluminium · grey powder-coated (colour to order)
Roof ventilator with no motor and no moving parts: the vehicle's own airflow when moving does the extraction. It uses no energy, it does not break down and always works. Gives 142 m³/h at 40 km/h and reaches 640 at 180 km/h. Roof cut-out Ø200 mm. It is the simplest and cheapest solution for renewing the air in a closed body.
Specifications
- Dimensions
- Ø outer 282 · height 77 mm · roof cut-out Ø200 · 6 holes Ø5,5 circular Ø230 — drawing «Dimensioni».
- Weight
- 0,57 kg
- Position
- Symmetrical part / not handed
- Vehicle area
- Roof
- Technical data
- Wind-driven fan STATIC, without motor and without moving parts · roof cut-out Ø200 mm · 6 holes Ø5,5 to 60° circular Ø230 · dimensions Ø282 × 77 mm high · flow rate 142 m³/h at 40 km/h, 213 at 60, 356 at 100, 640 at 180 · pressure difference up to 246 Pa · fine mesh at the outlet, insect mesh on request · RING IN the SEAL INCLUDED
Identification
- Supplier reference
- 642 370 000
- Brand
- Titgemeyer
- Type
- Component
COLOUR: the whole range is RAL 7035 LIGHT GREY. There is no white version — the items it replaces were white.
